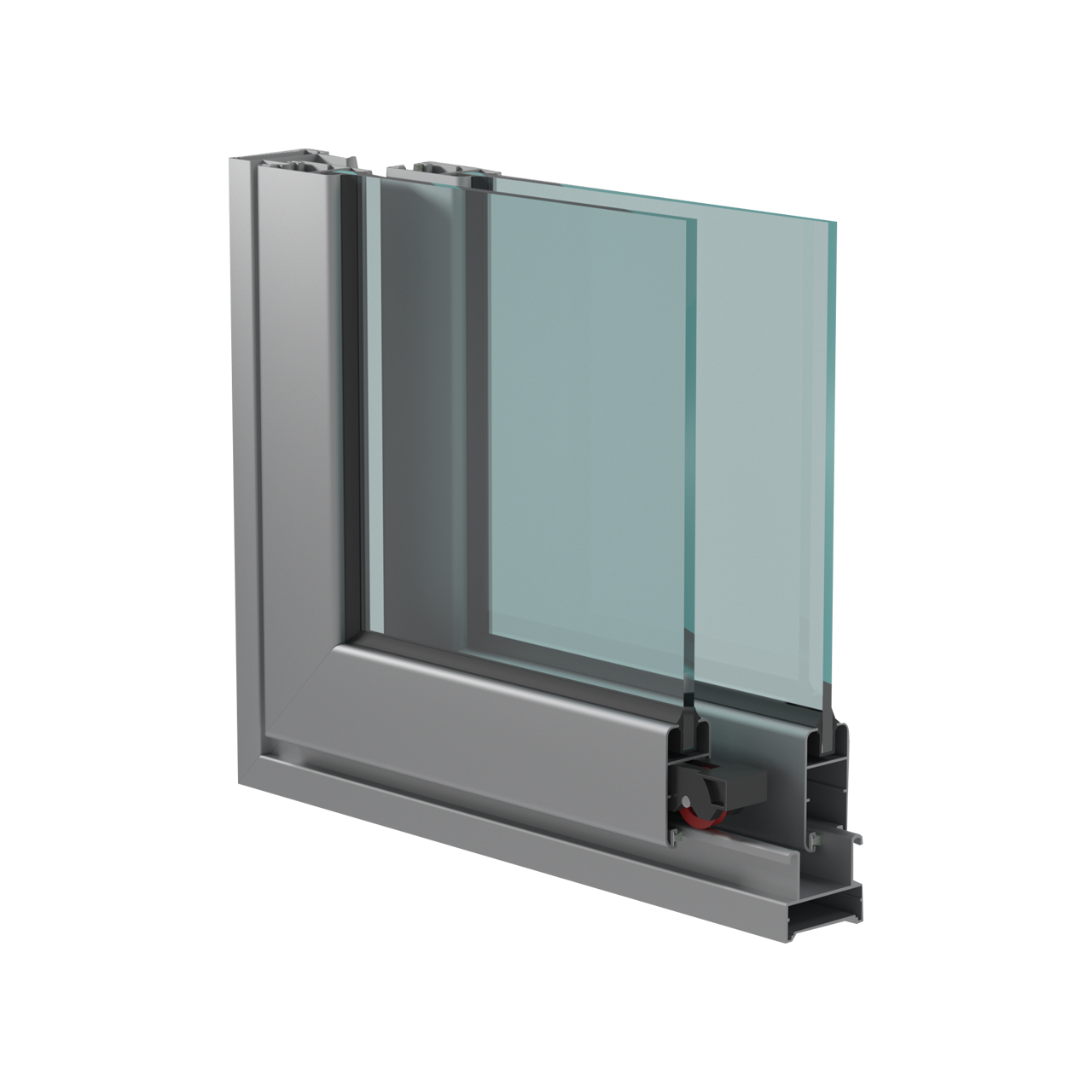

AL-Tech 22 system
22 profile system for complex glazing of balconies and loggias, stained glass windows.
System for cold glazing of balconies and loggias, stained glass windows.
Racks for through and stained glass glazing have reinforcement directed both to the outside and to the inside of the building
System features
Manufacturing of frame sliding and swing structures.
Manufacturing of door structures.
Production of stained glass structures with integrated opening sliding and swing elements.
Manufacturing of ventilation grilles built into stained glass windows.
Installation from the balcony parapet.
Installation “from slab to slab” or with removal behind the floor slab.
Aluminium Systems
Diverse Design Options, High Stability, and Longevity: Aluminium allows for the creation of large formats while maintaining optimal thermal insulation. These systems enhance the unique character of your home and ensure ample natural light in your interior spaces.
| Material | aluminium alloy AD31 T1 |
|---|---|
| Air permeability, m3/m2-h | At least 15 |
| Resistance to wind load | At least 506 |
| Seal material | TEP, EPDM |
| Fitting groove | Eurogroove, 15 × 20 mm |
| Fitting thicknesses, mm | 4 ... 24 |
| Gap between frame and sash, mm | 5 |
| Flange for glazing, mm | 18 |
The Material of the Future
Aluminium systems meet the highest quality standards and offer numerous benefits: exceptional stability, energy efficiency, enduring value, a wide range of surface finishes, slim frame sightlines, ease of use, minimal maintenance, and long-lasting durability.
Choosing aluminium systems is a decision you won't regret.
